For transport managers and fleet operators, versatility is an increasingly important consideration when investing in new transport solutions. With fleets expected to accommodate a wide range of machinery, choosing the right trailer can make a significant difference to operational efficiency, loading performance and long-term fleet utilisation.
From excavators and dumpers to scissor lifts and boom lifts, different machines present different transport challenges. Ground clearance, machine dimensions, weight distribution and loading requirements all influence how effectively equipment can be transported.
This is where a well-engineered step frame trailer offers a practical solution, combining a lower main deck with flexible loading arrangements to support a variety of plant and powered access applications.
One Trailer, Different Transport Requirements
For businesses operating across construction, plant hire and powered access, the ability to transport different machinery types is particularly valuable.
An excavator, for example, places different demands on a trailer compared with a scissor lift or articulated boom. While heavier plant requires a strong supporting structure and suitable load restraint provisions, machines with limited ground clearance demand careful consideration of loading angles and transitions between deck levels.
Rather than specifying transport equipment around one particular machine, operators can benefit from a trailer designed to accommodate a broader range of applications.

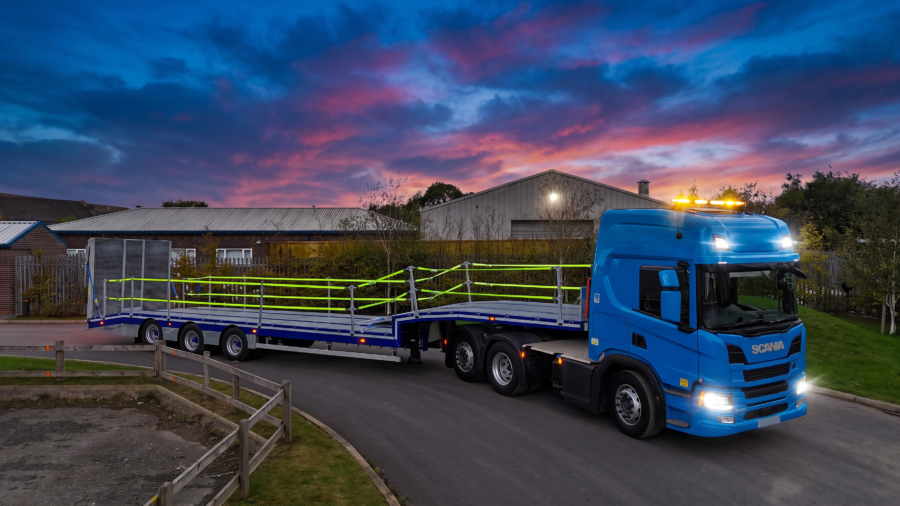

The Sterling ST440 Step Frame Trailer has been engineered with this versatility in mind, providing a specifically engineered solution for transporting plant, access equipment and low-ground-clearance machinery.
Loading Performance: Why Geometry Matters
One of the most important considerations when transporting different machinery types is how safely and efficiently they can be loaded.
Machines with limited ground clearance can be particularly challenging, especially when negotiating steep ramps or abrupt changes in deck height. An unsuitable loading arrangement can increase the risk of grounding or damage to the underside of the equipment.
The ST440 incorporates a reinforced two-stage gooseneck, designed to provide a maximum loading angle of 9 degrees, alongside a 1.3m beavertail also set at 9 degrees.
Combined with 3.2m twin double-flip hydraulic ramps, this arrangement provides operators with flexible loading options for machinery with differing dimensions and clearance requirements.
For transport businesses handling multiple machinery types throughout the working week, these considerations can make a meaningful difference to day-to-day operations.
Engineered for Demanding Plant Transport
Versatility should never come at the expense of structural strength.
Plant transport trailers must accommodate concentrated loads, repeated loading cycles and the demands of working across construction sites, depots and industrial environments.
The ST440 features a 13.6m tri-axle step frame construction, with a maximum plated weight of 44 tonnes. Its deck incorporates high-tensile steel I-beam crossmembers at 300mm centres, providing a robust structural foundation for demanding transport applications.
Three BPW axles, air suspension with a raise/lower facility and a lifting rear axle further contribute to its operational specification.
Importantly, operators must always assess individual machinery weights, axle loading, load distribution and applicable legal limits before transport.
Load Restraint Across Different Applications
The safe transportation of plant and powered access equipment requires more than simply providing sufficient deck space.
Different machines require different restraint arrangements, and the positioning, capacity and accessibility of lashing points all influence how effectively equipment can be secured.
The ST440 incorporates 8-tonne recessed lashing rings, with 21 pairs positioned along the side raves and a further 13 pairs within the centre runners.
This provides operators with a range of anchorage positions when securing machinery of varying sizes and configurations.
Regardless of trailer design, the restraint method must always be suitable for the specific machinery being transported.
Configured Around Your Fleet
No two transport operations are identical, which is why flexibility in trailer specification is just as important as flexibility in use.
The ST440 is available with several additional configurations, including full-width double-flip ramps, twin sliding ramps, powered ramp controls and alternative gooseneck access arrangements.
Operators can also specify full galvanised open steel grating across the trailer and ramps, providing an alternative to the standard Keruing hardwood decking.
These options allow businesses to tailor their trailer specification around the equipment they regularly transport, the environments they operate in and their preferred loading arrangements.
Alongside these choices, features such as an electric winch, slide-out handrail system and enclosed electrical wiring contribute to a design focused on practical, everyday operation.
A Versatile Investment for the Long Term
For fleet managers, the value of a step frame trailer extends beyond the individual journeys it completes.
A trailer capable of accommodating different machinery types can provide greater operational flexibility, helping businesses respond to changing customer requirements without necessarily relying on a dedicated trailer for every application.
However, selecting the right specification remains essential. Loading geometry, deck construction, restraint systems and machinery compatibility should all be assessed against the demands of the fleet.
The Sterling ST440 Step Frame Trailer brings these considerations together in a transport solution engineered for versatility, durability and demanding plant transport applications.
